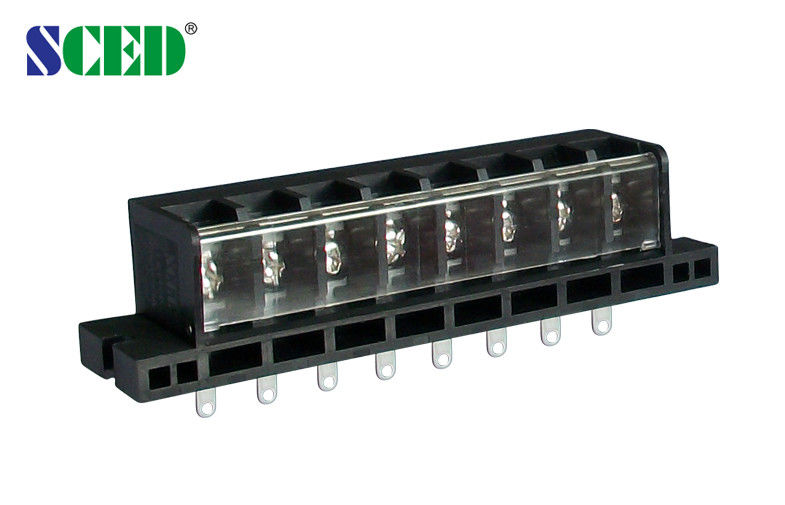

Barrier Terminal block Pitch 11.00mm 600V 30A 3P 4P 8P power terminal block
-
برجسته کردن
barrier type terminal block,pcb terminal blocks
,pcb terminal blocks
-
محل منبعشنژن، چین
-
نام تجاریSCED
-
گواهیUL, CE, CQC
-
شماره مدلTB1100-11F-C
-
مقدار حداقل تعداد سفارش500
-
قیمتGet latest price
-
جزئیات بسته بندیکارتن استاندارد صادراتی
-
زمان تحویل7-20 روز کاری
-
شرایط پرداختT/T
-
قابلیت ارائه1KK قطب هر ماه
Barrier Terminal block Pitch 11.00mm 600V 30A 3P 4P 8P power terminal block
Barrier Terminal block Pitch 11.00mm 600V 30A 3P 4P 8P power terminal block
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 30 | 600 / 15 | |
| Wire Range AWG | 10-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 41 | 800 / 41 | 1000 / 41 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 6 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 1.4x3.9 | ||
| Stripping Length mm | 9-10 | ||
| Screw / Torque / lbf.in | M 4 / 10-13 | ||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
