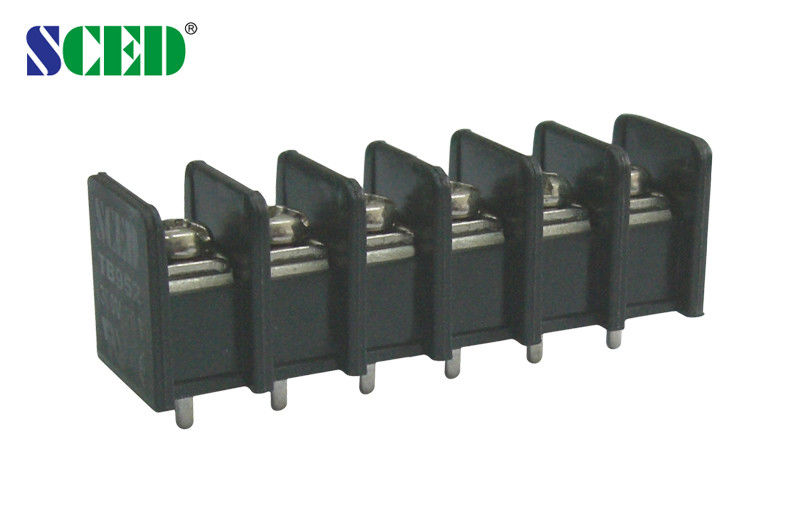

Barrier Black 20A / 300V PCB Terminal Blocks M4 Screw 9.525mm Pitch UL94-V0 Brass
-
برجسته کردن
Barrier PCB Terminal Blocks,9.525mm Pitch PCB Terminal Blocks,Brass Barrier Terminal Block
,9.525mm Pitch PCB Terminal Blocks
,Brass Barrier Terminal Block
-
رنگمشکی
-
پیچM4
-
گشتاور10-13 پوند بر اینچ
-
پلاستیکPBT
-
قطب2-24 قطب
-
فعلی20A
-
ولتاژ300 ولت
-
زمین9.525ميلي متر
-
محل منبعچین
-
نام تجاریSCED
-
گواهیUL,CE,CUL,CQC and VDE etc.
-
شماره مدلTB952-00
-
مقدار حداقل تعداد سفارش1000 قطعه/قطعه
-
قیمتUSD 0.048-0.11
-
جزئیات بسته بندیکارتن بسته بندی صادراتی استاندارد یا با توجه به تقاضای مشتریان
-
زمان تحویل5-20 روز کاری
-
شرایط پرداختL/C، T/T
-
قابلیت ارائه1000000 قطب / قطب در ماه
Barrier Black 20A / 300V PCB Terminal Blocks M4 Screw 9.525mm Pitch UL94-V0 Brass
Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/20 | 300/10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.2 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 4/ 10-13 | ||
Competitive Advantage:
- Good quality and reasonable price
- Quick response and good after-sales service
- More than 1000 models for selection
- OEM and ODM servicce
Applications:
Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.
