Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
-
برجسته کردن
Pluggable Single Level Terminal Blocks,Single Level Brass Female Connector,Pitch 7.62mm Brass Female Connector
,Single Level Brass Female Connector
,Pitch 7.62mm Brass Female Connector
-
رنگسبز
-
زمین7.62 میلی متر
-
تایپ کنیدبه برق بزنید
-
فعلی8A
-
ولتاژ300 ولت
-
قطب2-24 قطب
-
مواد عایقpa66
-
پیچM2
-
گشتاور2-2.2 پوند بر اینچ
-
قفس گیرهبرنج
-
محل منبعچین
-
نام تجاریSCED
-
گواهیCE,UL
-
شماره مدلTP508P-76
-
مقدار حداقل تعداد سفارش1000 قطعه/قطعه
-
قیمتUSD 0.06-0.12 PER Pole
-
جزئیات بسته بندیکارتن بسته بندی صادراتی استاندارد یا با توجه به تقاضای مشتریان.
-
زمان تحویل5-20 روز کاری
-
شرایط پرداختT/T، L/C
-
قابلیت ارائه1000000 قطب / قطب در ماه

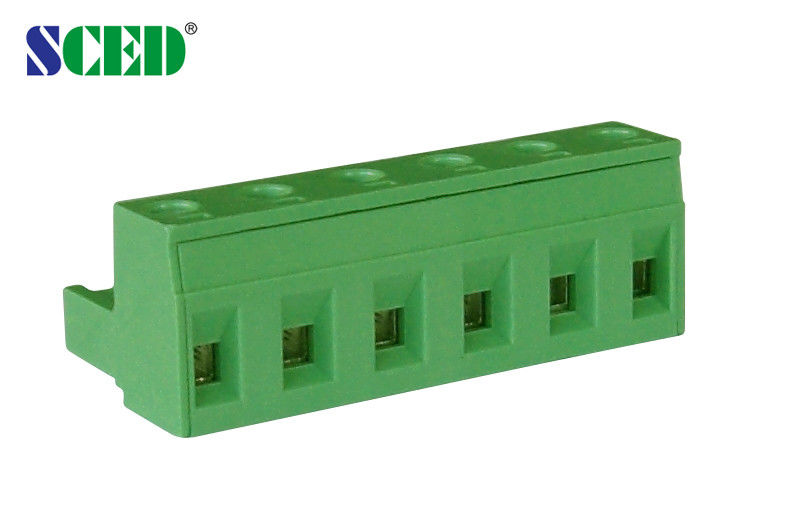

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
Detailed product Description:
Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V
Levels: ■Single Level
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.

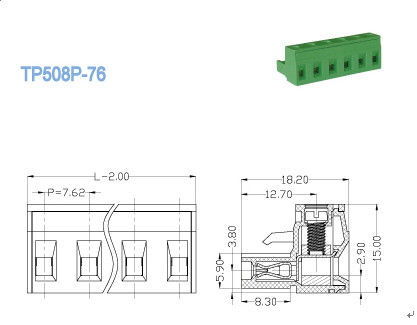

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 18 | 300 / 18 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
- High quality
- Reasonable price
- Full range products for selection
- Flexible to design the exact part per customers’ demand
